leaflet tilegrams

Who says a map has to reflect pre-established boundaries?

Cartograms, tilegrams, hexagrams, chartagrams– you can connect proportional polygons to whatever data you like and let visitors explore it interactively.

The repo containing the data and scripts for this section is on Github. To follow along, simply run the lines of code below in R.


# There is no need to run these install lines below if you already have done so
install.packages("usethis")
usethis::use_course("https://github.com/andrewbtran/NICAR-2020-mapping/archive/master.zip")

# This section is in scripts/04_leaflet_tilegrams.R
file.edit("scripts/04_leaflet_tilegrams.R")

Thanks to the efforts of others (Basically one person, Bhaskar Karambelar), you don’t have to do this quite from scratch anymore.

We won’t be going over this in class, as it is more of a demonstration. The code below is from Karambelar’s sites.

Interested in digging into this more?

Get ready to load a lot of packages, though.

# This function checks if you don't have the correct packages installed yet
# If not, it will install it for you
packages <- c("devtools", "purrr", "dplyr",
              "htmlwidgets", "stringr", "rvest", "xml2",
              "htmltools", "leaflet", "tilegramsR",
              "leaflet.extras", "colormap")
if (length(setdiff(packages, rownames(installed.packages()))) > 0) {
  install.packages(setdiff(packages, rownames(installed.packages())), repos = "https://cran.us.r-project.org")
}

if (!"usgazetteer" %in% rownames(installed.packages())) {
  devtools::install_github('bhaskarvk/usgazetteer')
}

── R CMD build ─────────────────────────────────────────────────────────────────
* checking for file ‘/private/var/folders/j8/qgwzqqm13xx0dz6b4p9r2ph00000gn/T/RtmplJUnOB/remotesa7ab2b2f2063/bhaskarvk-usgazetteer-8ed6cad/DESCRIPTION’ ... OK
* preparing ‘usgazetteer’:
* checking DESCRIPTION meta-information ... OK
* checking for LF line-endings in source and make files and shell scripts
* checking for empty or unneeded directories
* building ‘usgazetteer_0.1.2.tar.gz’
library(devtools)
library(purrr)
library(dplyr)
library(htmlwidgets)
library(stringr)
library(rvest)
library(xml2)
library(htmltools)
library(leaflet)
library(leaflet.extras)
library(tilegramsR)
library(colormap)
library(usgazetteer)

## Need to set up some leaflet crs projection options
## Restricting zooming and panning

getLeafletOptions <- function(minZoom, maxZoom, ...) {
  leafletOptions(
    crs = leafletCRS("L.CRS.Simple"),
    minZoom = minZoom, maxZoom = maxZoom,
    dragging = FALSE, zoomControl = FALSE,
    tap = FALSE,
    attributionControl = FALSE , ...)
}

## Coming up with a color palette
getFactorPal <- function(f) {
  colorFactor(colormap::colormap(
    colormap = colormap::colormaps$hsv,
    nshades = length(f)), f)
}

Washington Post grid

Here’s the original inspiration.

leaflet(
  options= getLeafletOptions(0.1, 0.1)) %>%
  addPolygons(
    data=sf_WP, group = 'states',
    weight=1,color='#000000', fillOpacity = 0.5, opacity=0.7,
    fillColor= ~getFactorPal(id)(id),
    highlightOptions = highlightOptions(weight = 3)) %>%
  addLabelOnlyMarkers(
    data=sf_WP.centers,
    label = ~as.character(id),
    labelOptions = labelOptions(
      noHide = 'T', textOnly = T, offset=c(-4,0), textsize = '12px',
      direction="auto")) %>%
  setMapWidgetStyle()

Make your own

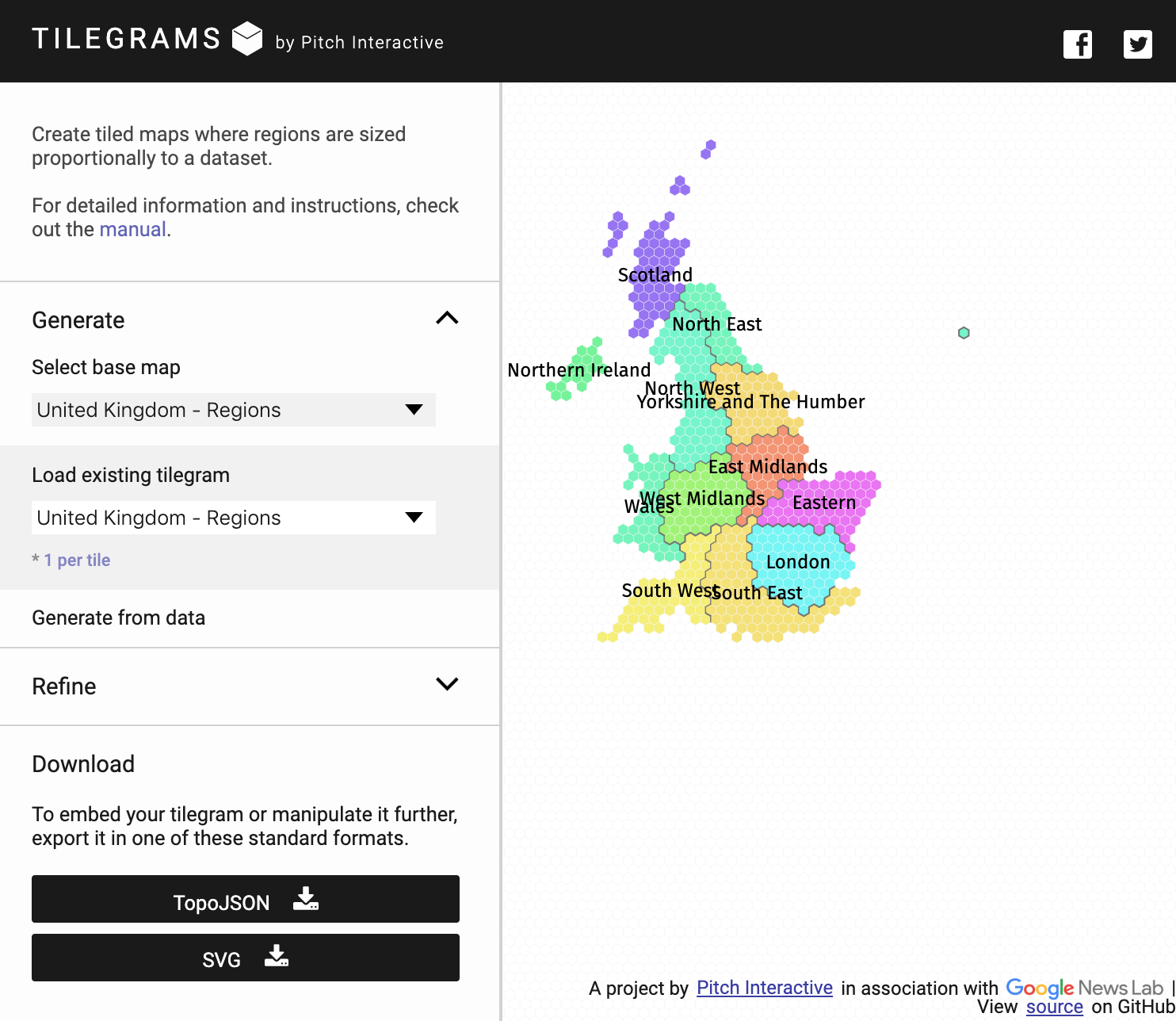

You can create your own tiled maps on this website and export it to be used with R or elsewhere.

Reproducing 538’s forecast map

This is based on the original here.

leaflet(
  options= getLeafletOptions(-1.5, -1.5)) %>%
  addPolygons(
    data=sf_FiveThirtyEightElectoralCollege,
    weight=1,color='#000000', fillOpacity = 0.5, opacity=0.2,
    fillColor= ~getFactorPal(state)(state)) %>%
  addPolygons(
    data=sf_FiveThirtyEightElectoralCollege.states, group = 'states',
    weight=2,color='#000000',
    fill = T, opacity = 1, fillOpacity = 0,
    highlightOptions = highlightOptions(weight = 4)) %>%
  addLabelOnlyMarkers(
    data=sf_FiveThirtyEightElectoralCollege.centers,
    label = ~as.character(state),
    labelOptions = labelOptions(
      noHide = 'T', textOnly = T,
      offset=c(-8,-20), textsize = '15px')) %>%
  setMapWidgetStyle()

Adding data and style to 538’s map

library(magrittr)

# The URL for election forecast
url <- 'https://projects.fivethirtyeight.com/2016-election-forecast/?ex_cid=2016-senate-forecast'

g <- xml2::read_html(url)

# These divs hold our data
state.winprobs <- g %>% rvest::html_nodes('.cards')
state.winprobs <- state.winprobs[2:52] # Select only state data

# How many electoral votes per state
electoral.votes <- purrr::map_chr(state.winprobs,
                         function(winprob) {
                           winprob %>%
                             rvest::html_node('p.top-powerbar') %>%
                             rvest::html_text()
                         }) %>%
  stringr::str_extract('[0-9]+') %>% as.numeric()

# 2 letter abbreviations for the states
states <- purrr::map_chr(state.winprobs,
                         function(winprob) {
                           winprob %>%
                             rvest::html_node('div.card-winprob') %>%
                             rvest::html_attr('data-card-id')
                         }) %>%
  stringr::str_extract('^..')

# Winning probability per state of Democrats.
dem.winprobs <- purrr::map_chr(state.winprobs,
                               function(winprob) {
                                 winprob %>%
                                   rvest::html_nodes('div.dem p.winprob') %>%
                                   rvest::html_text()
                               }) %>%
  stringr::str_replace_all('[^0-9\\.]','') %>% as.numeric()

# Winning probability per state of Republicans.
rep.winprobs <- purrr::map_chr(state.winprobs,
                               function(winprob) {
                                 winprob %>%
                                   rvest::html_nodes('div.rep p.winprob') %>%
                                   rvest::html_text()
                               }) %>%
  stringr::str_replace_all('[^0-9\\.]','') %>% as.numeric()

# Combine into a data.frame
winprobs <- data.frame(state=states,
                       electoral.votes=electoral.votes,
                       dem.winprob=dem.winprobs,
                       rep.winprob=rep.winprobs) %>%
  dplyr::mutate(
    who=factor(ifelse(dem.winprob>rep.winprob,'D','R')))

# Join with the spatial data from tilegramsR package
spdf <- FiveThirtyEightElectoralCollege.states
spdf@data %<>% dplyr::left_join(winprobs, by=c('state'='state'))

# This is our pretty hover content
spdf@data$hoverText <- mapply(
  function(st, vts, dem, rep, w) {
    htmltools::HTML(
      sprintf(
        "<div style='font-size:12px;width:200px;float:left'>
            <span style='font-size:18px;font-weight:bold'>%s</span><br/>
            Chances of Winning<br/>
            <div style='width:95%%'>
              <span style='float:left'>Clinton</span>
              <span style='float:right'>Trump</span>
              <br/>
              <span style='color:#2aa1ec;float:left'>%s%%</span>
              <span style='color:#fe6a59;float:right'>%s%%</span><br clear='all'/>
              <span style='background:#2aa1ec;width:%s%%;float:left'>&nbsp;</span>
              <span style='background:#fe6a59;width:%s%%;float:right'>&nbsp;</span>
            </div>
            <br/><span style='font-size:10px'>%s electoral Votes</span>
        </div>",
        usgazetteer::state.areas.2010$State[
          which(usgazetteer::state.areas.2010$USPS==st)],
        dem, rep,
        dem, rep,
        vts
      )
    )
  },
  spdf@data$state, spdf@data$electoral.votes,
  spdf@data$dem.winprob, spdf@data$rep.winprob,
  spdf@data$who, SIMPLIFY = F) %>%
  set_names(spdf@data$states)

# Dems are blue and Reps are red.
factpal <- colorFactor(c("#2aa1ec", "#fe6a59"), spdf@data$who)

leaflet(options=leafletOptions(
  crs = leafletCRS("L.CRS.Simple"),
  minZoom = -1.5, maxZoom = -1.5,
  dragging = FALSE, zoomControl = FALSE,
  attributionControl = FALSE)) %>%
  addPolygons(
    data=FiveThirtyEightElectoralCollege, group = 'college',
    weight=1,color='#000', fill=F, opacity=0.3) %>%
  addPolygons(
    data=spdf, group = 'states',
    weight=1, color='#222',
    fillColor= ~factpal(who), fill = T, opacity = 1,
    fillOpacity = ~ifelse(who=='D',(dem.winprob/100)-0.1,
                          (rep.winprob/100)-0.1),
    label=~hoverText,
    labelOptions = labelOptions(
      offset = c(-100,-140),
      #direction='bottom',
      textOnly = T,
      style=list(
        'background'='rgba(255,255,255,0.95)',
        'border-color' = 'rgba(0,0,0,1)',
        'border-radius' = '4px',
        'border-style' = 'solid',
        'border-width' = '4px')),
    highlightOptions = highlightOptions(weight = 3, bringToFront = TRUE)) %>%
  addLabelOnlyMarkers(
    data=FiveThirtyEightElectoralCollege.centers,
    label = ~as.character(state),
    labelOptions = labelOptions(
      noHide = 'T', textOnly = T,
      offset=c(-5,-10), textsize = '15px',
      style=list('color'='black')) )  %>%
  htmlwidgets::onRender(
    "function(el, t) {
        var myMap = this;
        // get rid of the ugly grey background
        myMap._container.style['background'] = '#ffffff';
    }")
